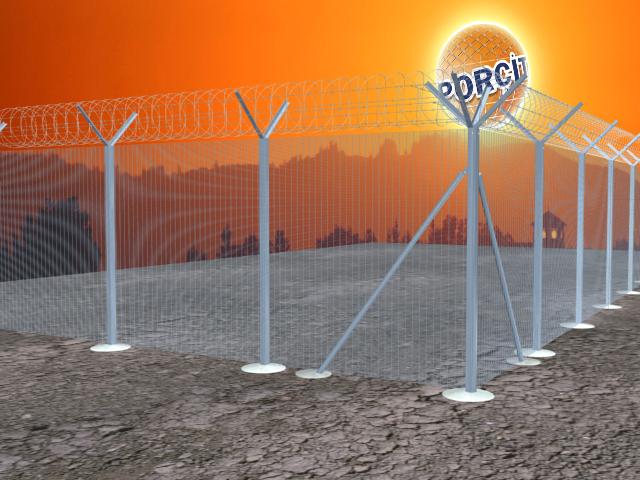

Typical WHihg Security Fencing

Typical WHihg Security Fencing
Explanation
System Height : 2500+300 mm
Distance Line Post : 3000 mm

Corner Post : 80*80*5 mm Box Profile ( Every 50 meters)
Line Material : 80*80*5 mm Box Profile
Post Type : Head Post (V)
Support : Vertical Connected
Support Material : ø 48*3 mm Pipe
Post Installation Types : Concrete Installation

Coating : Hot Dip Galvanized

Board Material : Galvanized YG Panel ( ø 4 mm / 12,7*76,2 mm)
Height : 2500 mm
Top Quard : Barbed Wire ( 6 lines)+Razor Wire ø 600 mm
Detail 1
Detail 1
Detail 2
Detail 2
Detail 3
Detail 3
Detail 4
Detail 4
Detail 5
Detail 5
