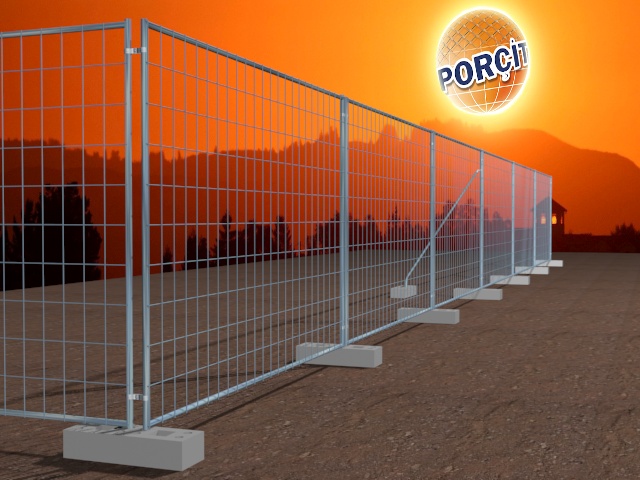

AT Mobile

AT Mobile
Explanation
Type : AT
System Height : 2000 mm
Board Dimensions : 2000 / 2500 mm*(1800+200) mm
Board Material : Pipe / Box Profile
Board Coating : Hot Dip Galvanized / Painted
Board Wire : Grating Panel / Trapeze Sheet / Canvas / Plexiglass
Foot Material : Precast Concrete / Metal / Plastic
Concrete Foot Dimensions : 650*200*140 mm
Concrete Foot Height : 45 kg
Support Material : Pipe / Box Profile
Detail 1.3
Detail 1.3
Detail 1.4
Detail 1.4
Detail 1.6
Detail 1.6
Detail 2.1
Detail 2.1
Detail 2.2
Detail 2.2
Detail 3
Detail 3
Detail 2.3
Detail 2.3
Detail 3.1
Detail 3.1
Detail 3.2
Detail 3.2
