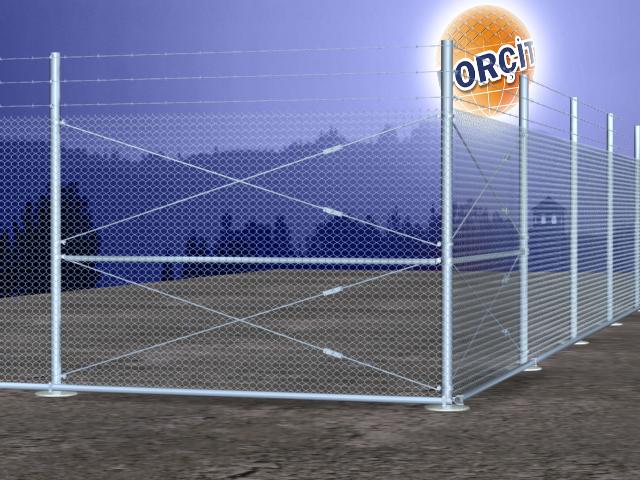

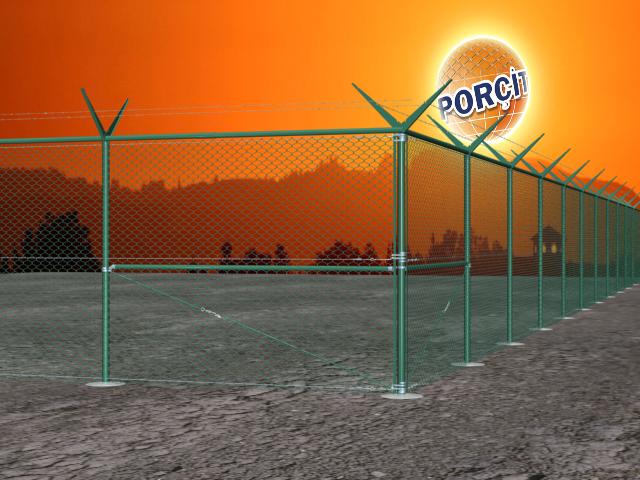

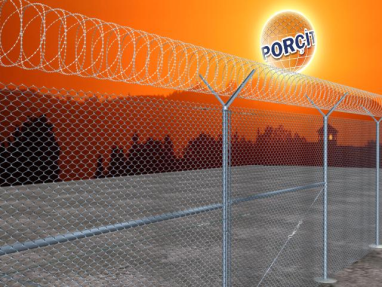

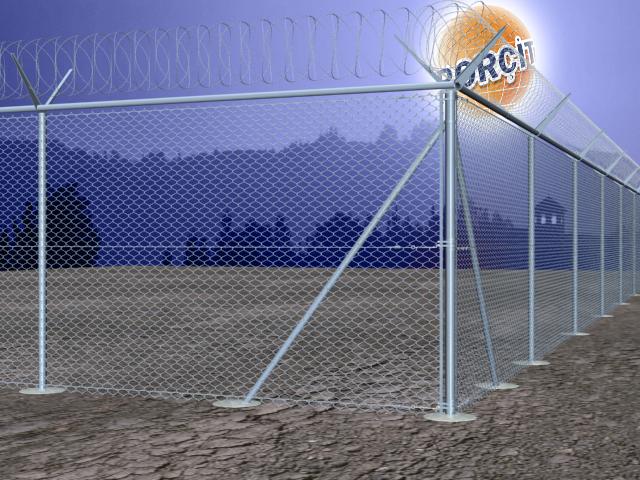

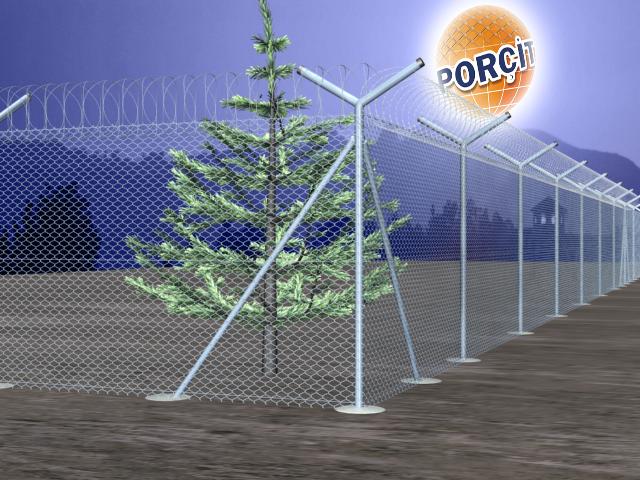

ASTM/ BS Standardı Çitler

ASTM/ BS Standardı Çitler
Explanation
Post Type : Straight / Straight+ Extension Arms
Post Height : Variable
Extension Arm : Single / Double

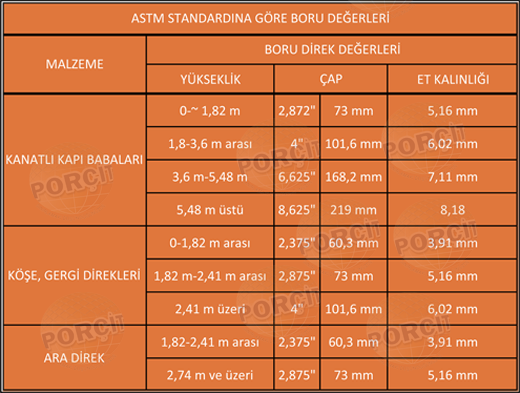

Line Post : Pipe / Depending on height
Corner / Pull Post : Pipe / Depending on height
Support Type : Horizontal / Vertical / Diagonal
Support Material : Pipe / Depending on height
Trussrod : ø 10 mm Iron
Strecher Bar : 20*5 mm Plate
Tension Wire : ø 3,76 mm ~ 4,5 mm Galvanized / PVC
Mesh Wire : ø 3,76 mm ~ 4,5 mm Galvanized / PVC
Mesh Size : 50*50 mm
Connection Apparatus : Clamp / Adapter / Turnbuckle
Coating : Hot Dip Galvanized / Polyester Painting
Coating Standard : ASTM A123 / BS 729

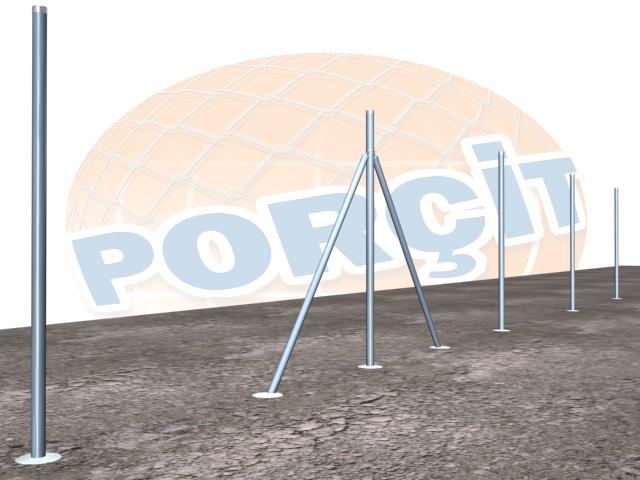

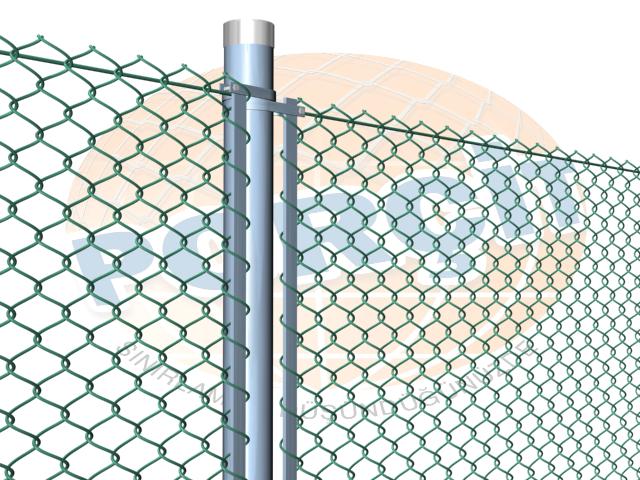

Post Detail 1
Post Detail 1
Post Detail 1
Post Detail 1
Post Detail 1
Post Detail 1
Post Detail 1
Post Detail 1
Post Detail 2
Post Detail 2
Post Detail 3
Post Detail 3
Post Detail 4
Post Detail 4
Post Detail 5
Post Detail 5
Post Detail 6
Post Detail 6
Post Detail 7
Post Detail 7
Post Detail 8
Post Detail 8
Post Detail 9
Post Detail 9

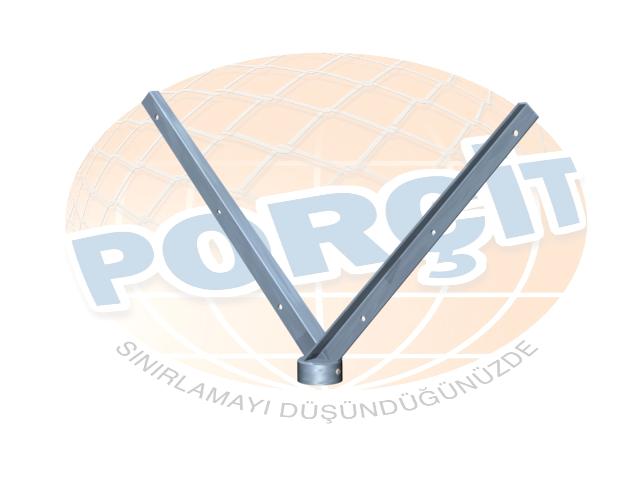

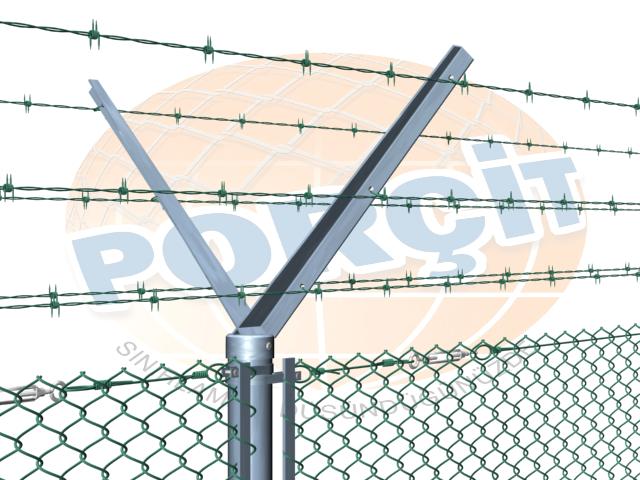

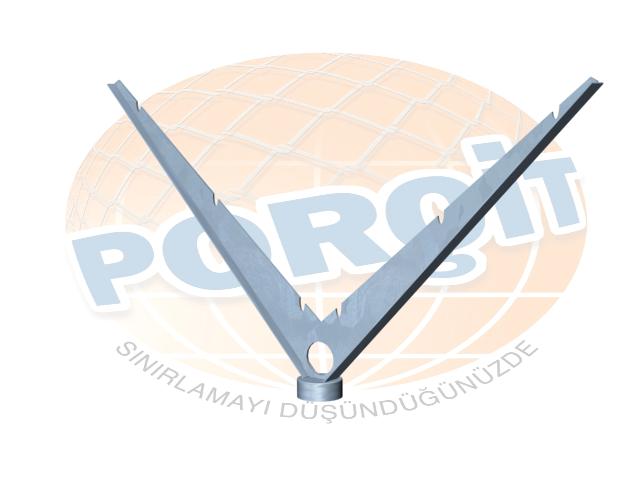

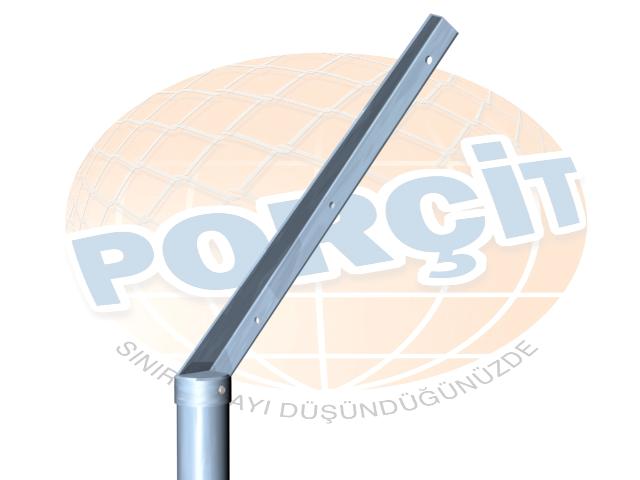

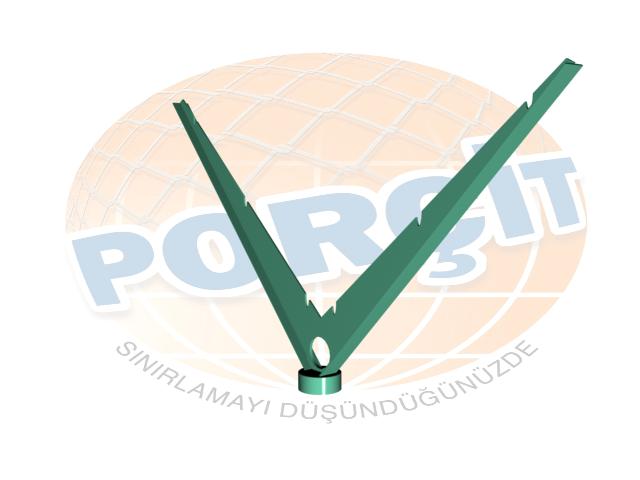

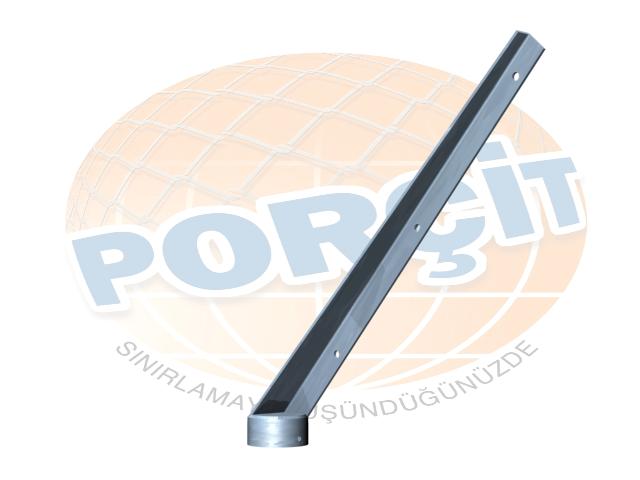

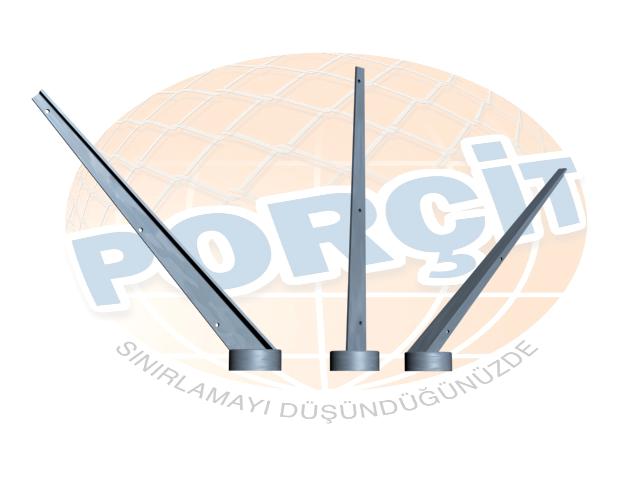

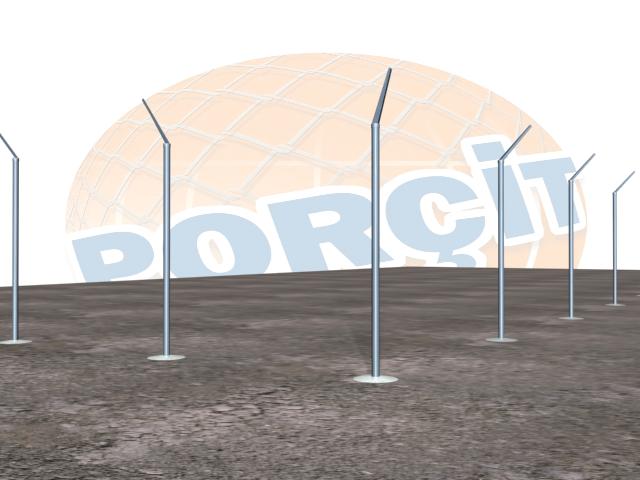

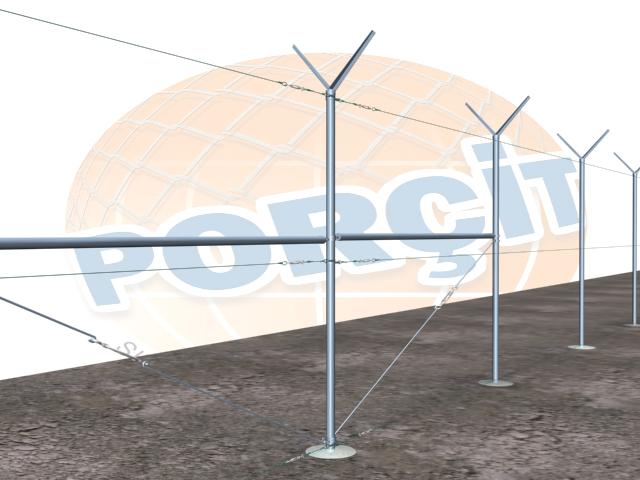

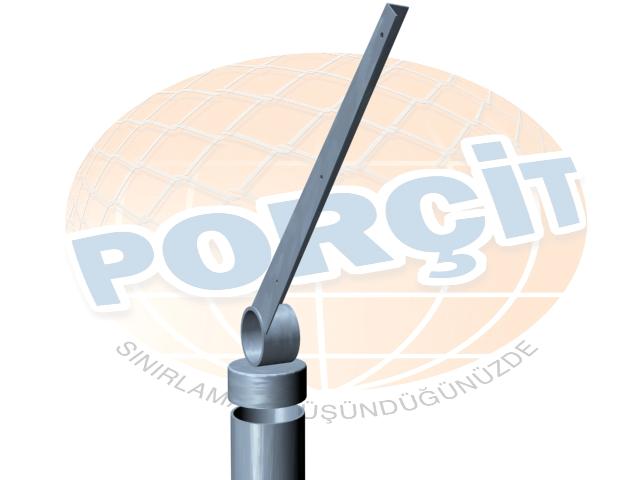

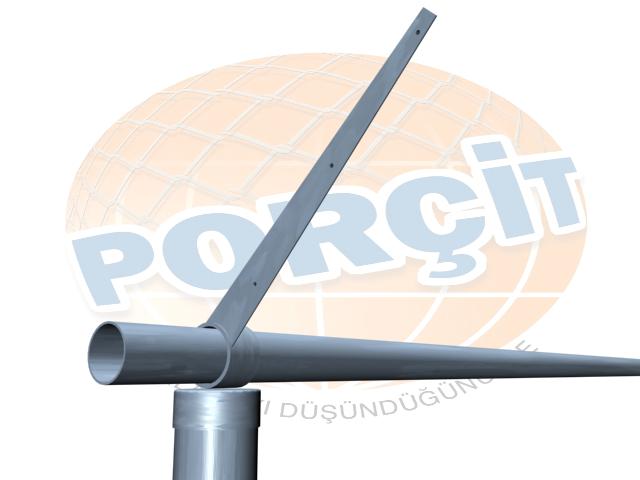

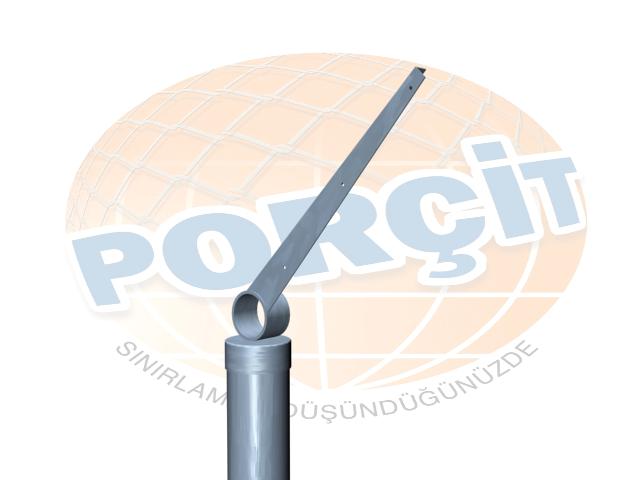

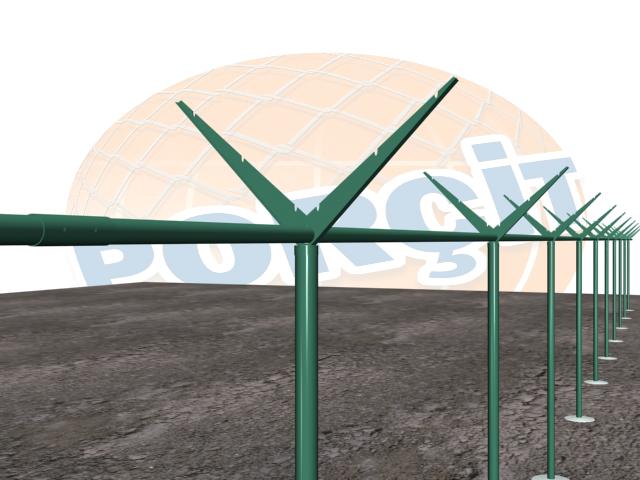

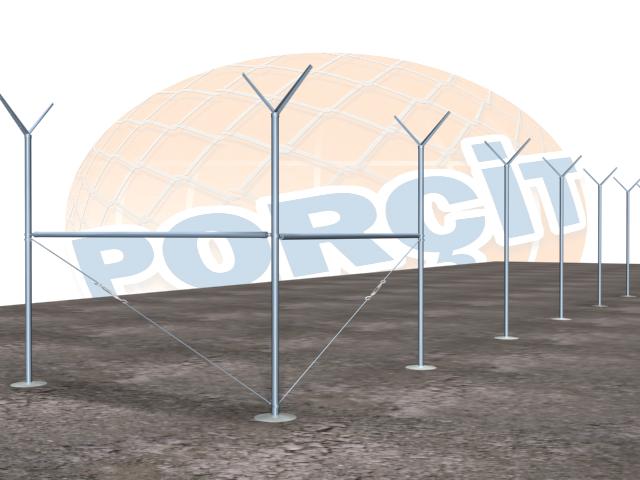

Extension Arm
Extension Arm
Extension Arm 2
Extension Arm 2
Extension Arm 3
Extension Arm 3
Extension Arm 4
Extension Arm 4
Extension Arm 5
Extension Arm 5
Extension Arm 6
Extension Arm 6
Extension Arm 7
Extension Arm 7
Extension Arm 8
Extension Arm 8

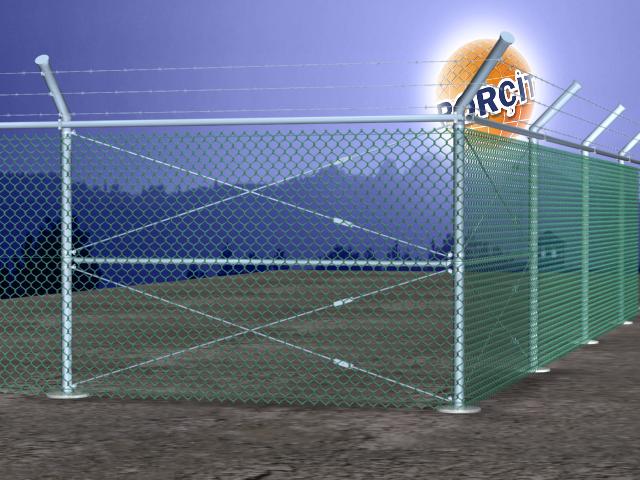

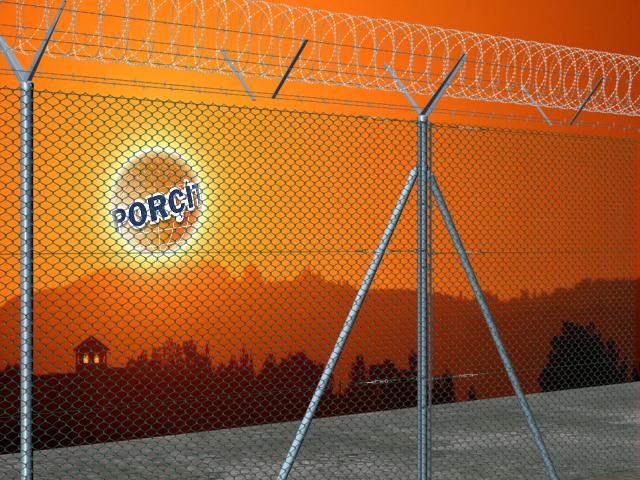

Support Detail 1
Support Detail 1
Support Detail 2
Support Detail 2
Support Detail 3
Support Detail 3
Support Detail 4
Support Detail 4
Support Detail 5
Support Detail 5

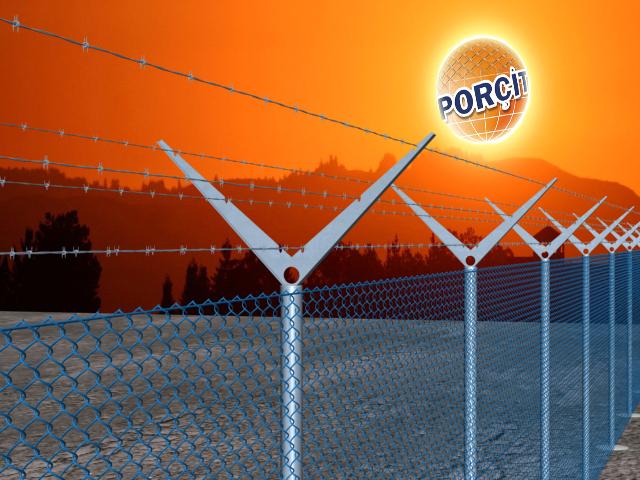

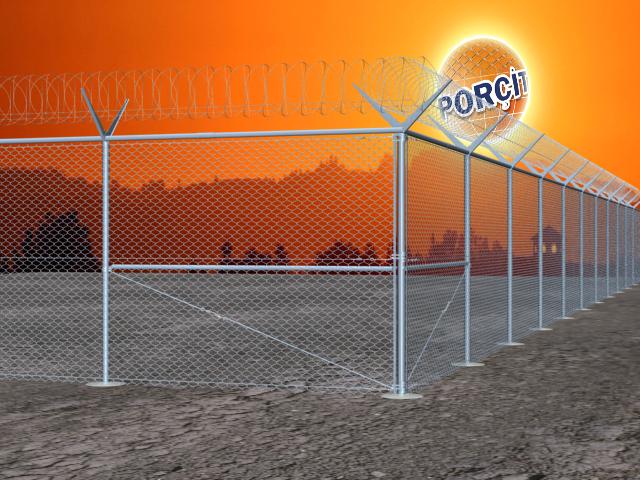

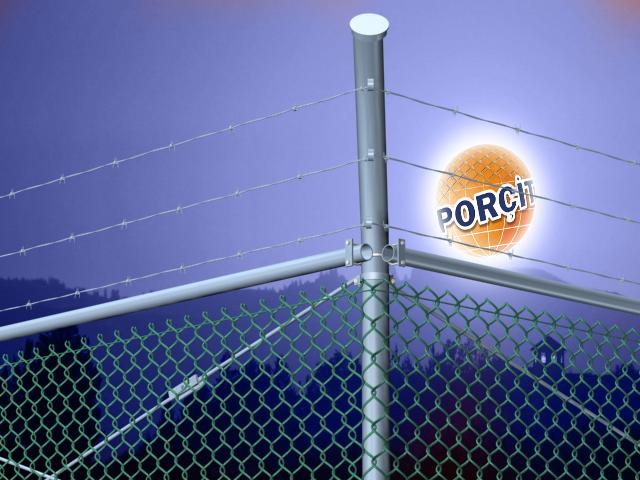

Mesh Wire Detail 1
Mesh Wire Detail 1
Mesh Wire Detail 2
Mesh Wire Detail 2
Mesh Wire Detail 3
Mesh Wire Detail 3
Mesh Wire Detail 4
Mesh Wire Detail 4
Mesh Wire Detail 5
Mesh Wire Detail 5
Mesh Wire Detail 6
Mesh Wire Detail 6
Mesh Wire Detail 7
Mesh Wire Detail 7
Mesh Wire Detail 8
Mesh Wire Detail 8
